PVD ／PECVD Coating series
FCVA500
Production Description
The FCVA500 is a ta-C (Tetrahedral Amorphous Carbon) coating system independently developed by KUIDING Co., Ltd.

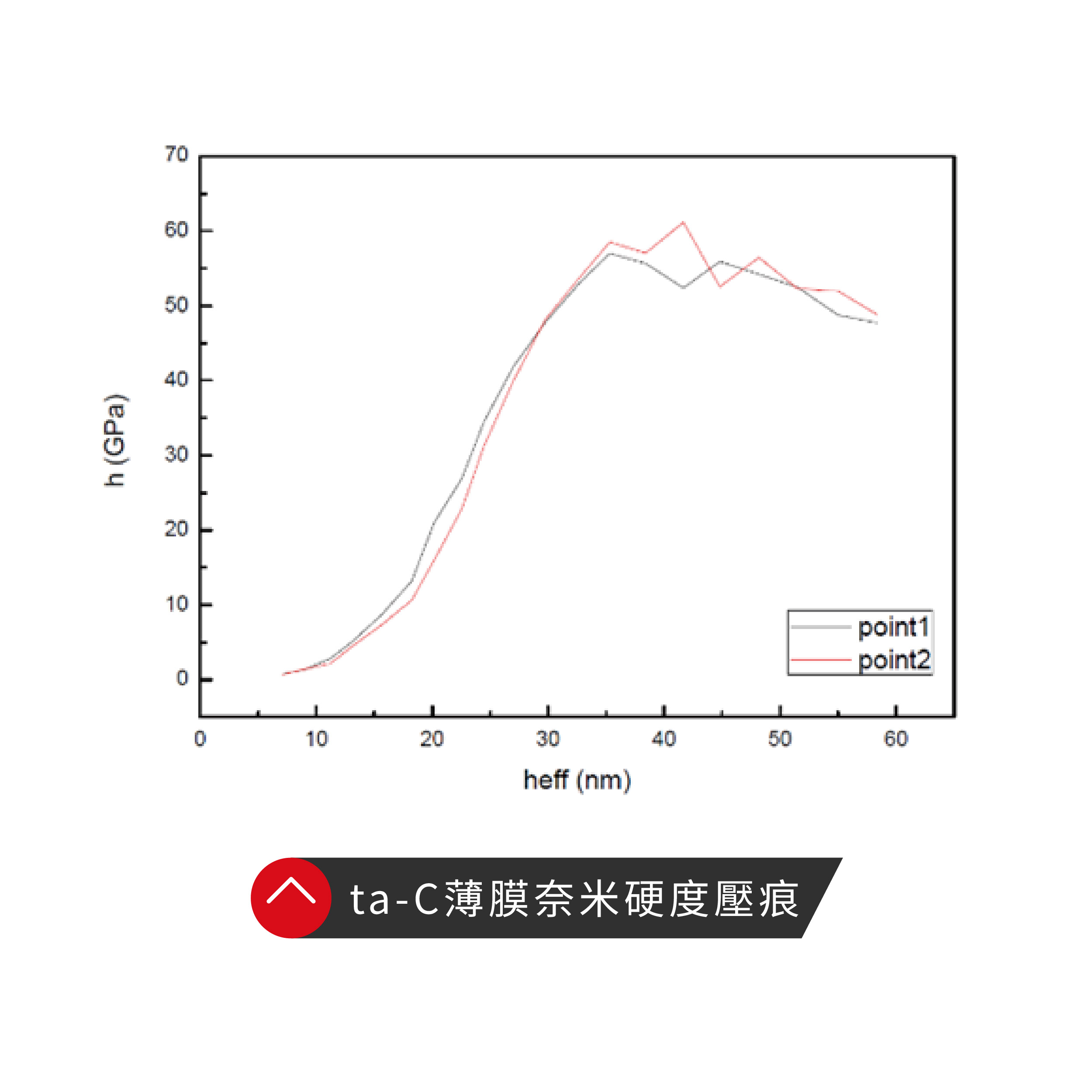

The ta-C film features excellent density and high hardness (>HV4000), making it ideal for micro-diameter drill bits. It has been certified and recognized in multiple countries, including Taiwan, China, Japan, and South Korea.
The ta-C film features excellent density and high hardness (>HV4000), making it ideal for micro-diameter drill bits. It has been certified and recognized in multiple countries, including Taiwan, China, Japan, and South Korea.
Product Features
- ◆ Specifically designed for tungsten carbide end mills, PCB drill bits, and Punch & Die tools used for non-ferrous alloys.
- ◆ Equipped with a curved-pipe filtration design to ensure superior film quality.
- ◆ Symmetrical arc arrangement enhances the deposition rate.
